HSD Features
// Heat Sink Software
Our Heat Sink Software Tool Is Now Offered at $195. A Steep Discount!
”Never have so few dollars owed so much to so many features”– Anonymous
Air & liquid cooling – fan/pump input option – ducted flow or bypass – multiple heat sources
Automated optimization; off-the-shelf product list with results; or customize to your liking
Includes customizable libraries of materials, interfaces, fluids, and off-the-shelf heat sinks
// They thought of everything.
It’s a real time saver and very intuitive to use
Catharina Biber: MIT PhD, Intel, Wakefield, and Biber Thermal Newsletter
- Forced and natural convection, conduction and radiation
2. Forced air can be modeled as a simple fan with pressure drop
3. Air and liquid cooling (can be customized)
4. Ducted flow (can be customized)
5. Multiple heat sources (enter sizes, locations, and TIMs)
6. Technologies: Extruded, skived, forged, folded, staked, et al
7. Libraries of common properties, or use defaults, or customize:

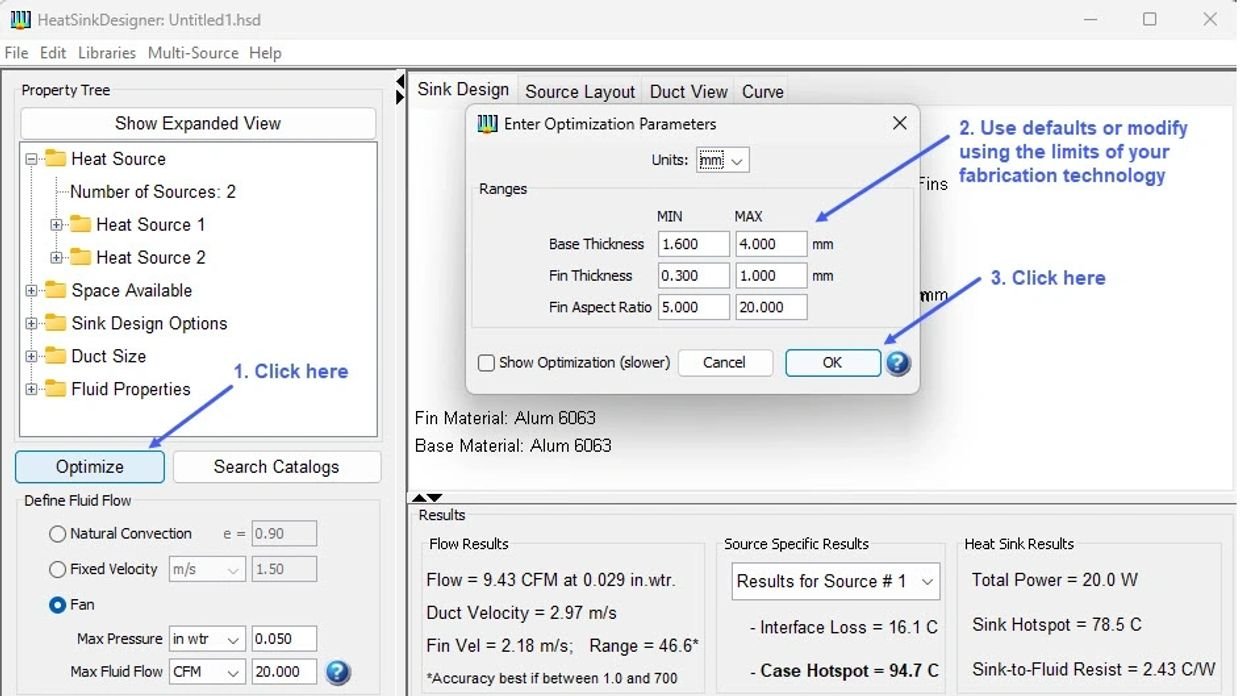

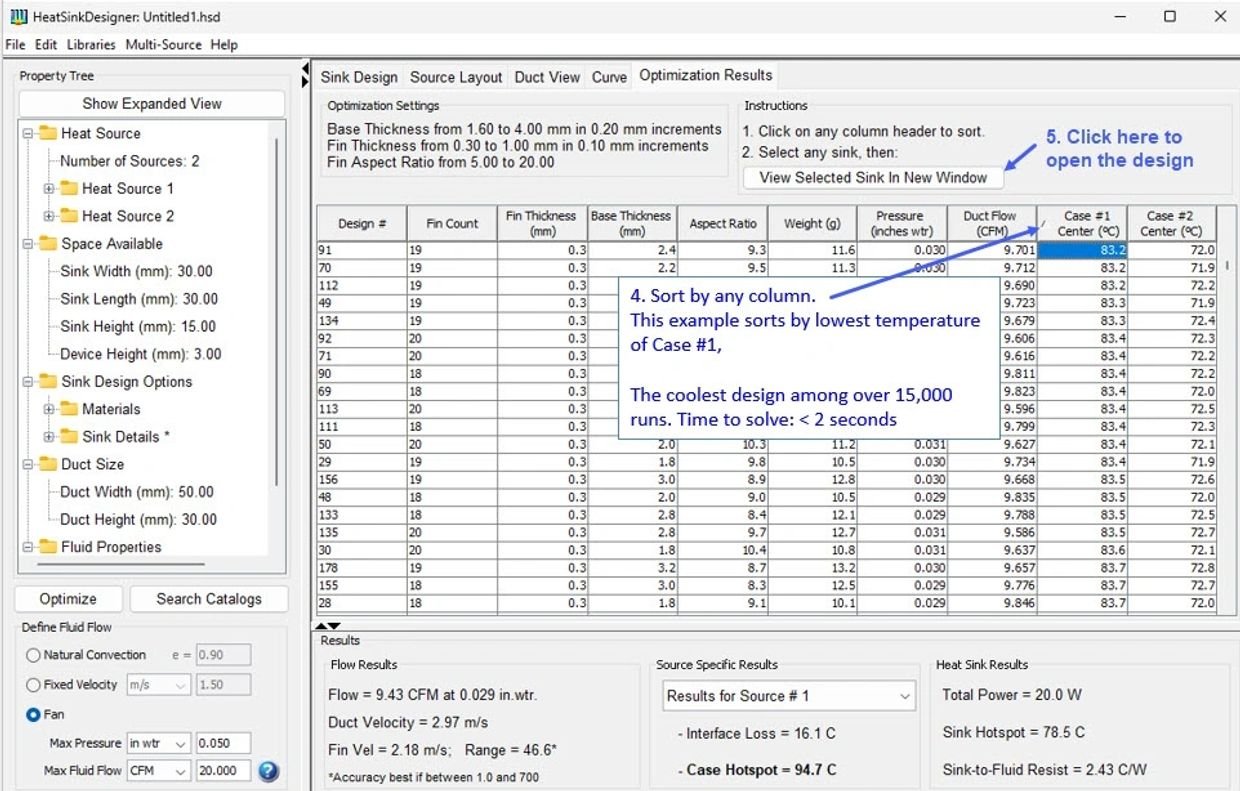

8. Optimize” button lists a spreadsheet of custom designs
9. “Search Catalogs” lists a spreadsheet of off-the-shelf sinks
Multiple Heat Sources
Default mode is a single heat source centered on the sink
Multiple Source mode allows for a custom number of sources, each with custom power, size, and thermal interface
Ducted or Open Flow
HSD automatically accounts for air bypass using your duct size and fan curve as input, and calculating the sink pressure drop and fan operating point.
